Midi Excavator

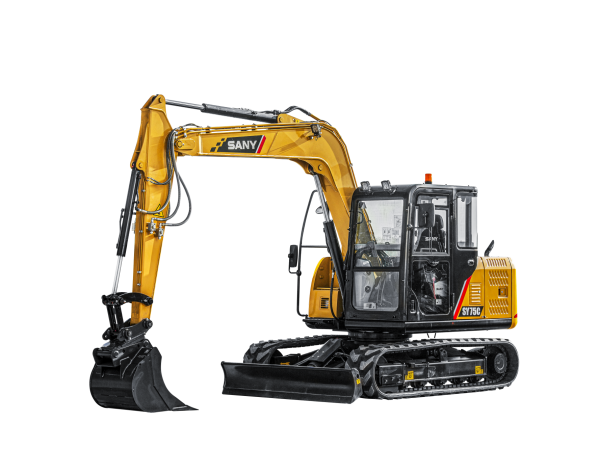

SANY SY75C
INDUSTRY LEADING 5-YEAR WARRANTY
The new SANY SY75C – powerful and with a large excavation depth, this machine completes all tasks efficiently and with a reliable performance. The excavator’s sophisticated structure allows it to tackle very high loads with exemplary stability. In addition, the cab’s comfortable and ergonomic design is precisely tailored to the requirements for safe and concentrated work.
– Stage V YANMAR engine and efficient load sensing hydraulic system
– Comfortable ROPS/FOPS certified operators cab
– 5 year warranty for complete peace of mind
Technical Specs
| Dimensions | |
| Rear Length | 1800mm |
|---|---|
| Track Guage | 1750mm |
| Undercarriage Width (With Blade) | 2220mm |
| Horizontal Clearence to Blade | 1735mm |
| Blade Height | 405mm |
| Track Height | 680mm |
| Track Pad Width | 450mm |
| Min Ground Clearence | 380mm |
| Overal Length | 6115mm |
| Rear Weight Ground Clearence | 750mm |
| Total Width | 2220mm |
| Bonnet Height | 1720mm |
| Total Width of Superstructure | 2040mm |
| Tail Swing Radius | 1800mm |
| Overall Height Above Cab | 2570mm |
| Distance (Centre) Track Sprocket to IOdler Sprocket | 2195mm |
| Overall Height of The Boom | 2760mm |
| Undercarriage Length | 2820mm |
| Engine | |
| Model | Yanmar 4TNV98C-WSY |
|---|---|
| Type | Water-cooled, 4 cylinder, with commonrail and DPF |
| Emission Standard | Stage V |
| Rated Power | 42.4 kW / 1900 rpm |
| Max Torque | 241 Nm / 1300 rpm |
| Displacment | 3319 ccm |
| Batteries | 2 x 12v 80 Ah |
| Filling Quantities | |
| Fuel Tank | 150 litres |
|---|---|
| Engine Coolant | 12 litres |
| Engine Oil | 10.8 litres |
| Traction Drive (Per Side) | 1.2 litres |
| Hydrauylic System | 160 litres |
| Hydraulic Oil Tank | 120 litres |
| Hydraulic System | |
| Main Pump | Variable displacement axial piston pumps with load-sensing hydraulics |
|---|---|
| Max Oil Flow, | 135 l/min |
| Traction Drive | Variable displacement axial piston motor |
| Swing Motor | Axial piston motor |
| Max Oil Flow (AUX 1) | 120 l/min |
| Max Oil Flow (AUX 2) | 120 l/min |
| Operating Wegiht | |
| Operating Weight | 7280 kg |
|---|---|
| Pressure Limiting Valves | |
| Boom Circtuit | 263 bar |
|---|---|
| Swing Circuit | 216 bar |
| Driving Circuit | 260 bar |
| Pre-Control Circuit | 35 bar |
| Rated Power | |
| Bucket Digging Force ISO | 53 kN |
|---|---|
| Arm Digging Force ISO | 35 kN |
| Swing Speed | 11.5 rpm |
| Max Travel Speeds | Fast 4.2 km/h, slow 2.3 km/h |
| Max Traction Force | 56.8 kN |
| Bucket Capacity | 0.28m³ |
| Ground Pressure | 0.33 kg/cm² |
| Gradeability | 35 degrees |
| Undercarriage and Superstructure | |
| Boom Length | 3720mm |
|---|---|
| Arm Length | 2050mm |
| Bottom Rollers | 5 |
| Top Rollers | 1 |
| Swinging Gear | Planetary gear reducer driven by an axial piston motor, automatic hydraulic released slewing brake |
| Working Area | |
| Min Dumping Height | 2040mm |
|---|---|
| Max Vertical Digging Depth | 3840mm |
| Overall Height at Min Swing Radius | 5560mm |
| Arm Head Separation for Max. Working Equipment Retraction | 1735mm |
| Swing Radius with Swing Frame (L) | 1940mm |
| Swing Radius with Swing Frame (R) | 390mm |
| Min Swing Radius | 1940mm |
| Max Ground Clearence of Blade Up | 390mm |
| Max Depth of Blade Down | 330mm |
| Max Digging Reach | 6505mm |
| Max Digging Depth | 4450mm |
| Max Digging Height | 7390mm |
| Max Dumping Height | 5490mm |
