Crawler Excavators

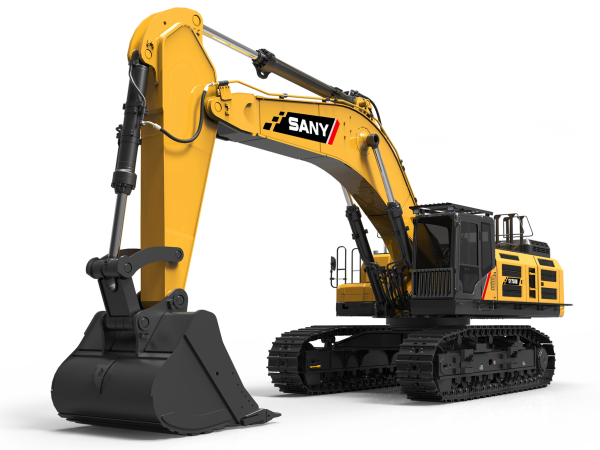

SANY SY750H
INDUSTRY LEADING 5-YEAR WARRANTY
Built to endure the hardest working environments, SANY’s large SY750H excavator has been designed for mass excavation work with a dig depth of 25ft and bucket breakout force of 92,171 Ibf. When it comes to equipment, this machine is in the top class. Everything you would expect from an excavator in the 78–tonne class is included on-board as standard.
– Powerful Stage V CUMMINS engine
– Smooth operation from ergonomically designed ROPS/FOPS operators cab
– 5 year warranty for complete peace of mind
Technical Specs
| Dimensions | |
| Overal Length | 12879mm |
|---|---|
| Total Width | 4030mm Extended3430mm Retracted |
| Total Width of Superstructure | 4479mm with Walkways3484mm without Walkways |
| Overall Height Above Cab | 3795mm |
| Overall Height of The Boom | 4981mm |
| Track Guage | 3380mm Extended2780mm Retracted |
| Track Pad Width | 650mm |
| Tail Swing Radius | 4175mm |
| Engine | |
| Model | CUMMINS X15 |
|---|---|
| Emission Standard | Stage V |
| Rated Power | 391 kW |
| Filling Quantities | |
| Fuel Tank | 940 litres |
|---|---|
| Engine Coolant | 75 litres |
| Engine Oil | 40 litres |
| AdBlue | 100 litres |
| Hydraulic Oil Tank | 680 litres |
| Hydraulic System | |
| Max Oil Flow, | 1008 l/min |
|---|---|
| Swing Motor | Axial piston motor |
| Max Oil Flow (AUX 1) | 1008 l/min |
| Main Pump | Positive Flow w/Pilot Control |
| Operating Wegiht | |
| Operating Weight | 78500 kg |
|---|---|
| Rated Power | |
| Swing Speed | 7.2 rpm |
|---|---|
| Max Travel Speeds | Fast 4.5 km/h, slow 2.9 km/h |
| Max Traction Force | 546.8 kN |
| Gradeability | 35 degrees |
| Undercarriage and Superstructure | |
| Boom Length | 7000mm |
|---|---|
| Arm Length | 3000mm |
| Bottom Rollers | 8 |
| Top Rollers | 3 |
| Working Area | |
| Max Digging Reach | 12100mm |
|---|---|
| Max Digging Depth | 7580mm |
| Max Digging Height | 11020mm |
| Max Dumping Height | 7170mm |
| Min Swing Radius | 5390mm |
