Midi Excavator

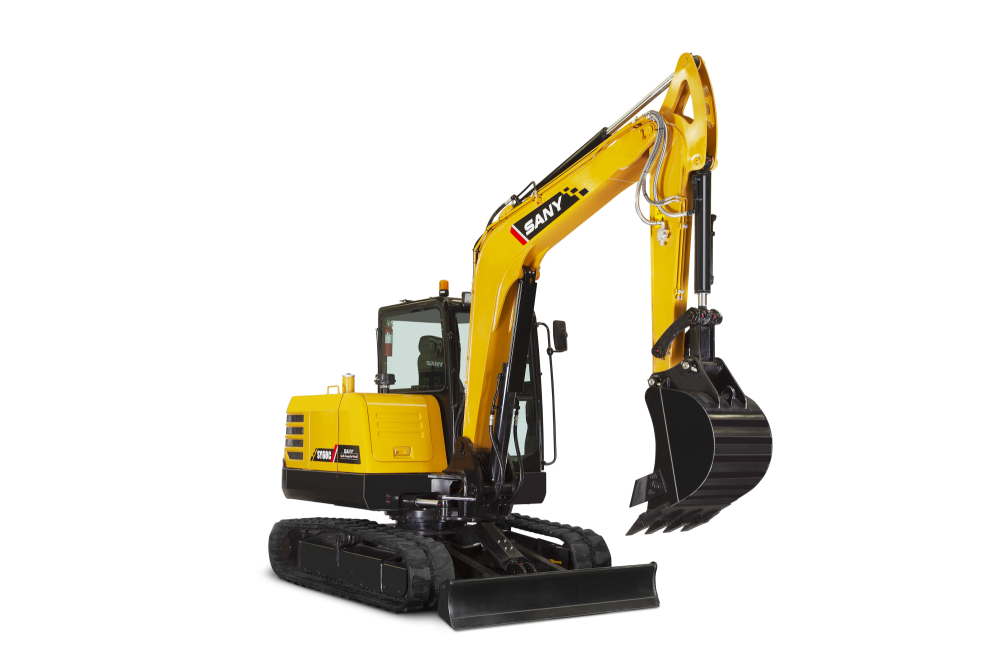

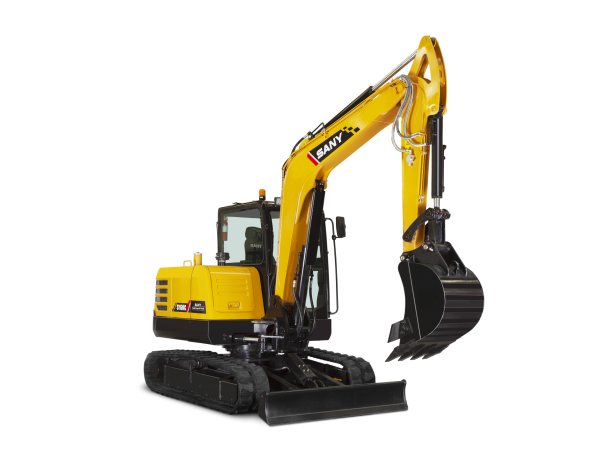

SANY SY60C
INDUSTRY LEADING 5-YEAR WARRANTY
The SY60C compact excavator delivers incredible fuel efficiency while offering the power and performance you need on site. This 6-tonne machine is perfectly suited for excavation, land clearing, and demolition work and easily proves itself to be a worthwhile investment with its high level of productivity.
– Stage V YANMAR engine and efficient load sending hydraulic system
– Comfortable ROPS/FOPS certified operators cab
– 5 year warranty for complete peace of mind
Technical Specs
| Dimensions | |
| Overal Length | 6015mm |
|---|---|
| Total Width | 2005mm |
| Overall Height Above Cab | 2645mm |
| Undercarriage Length | 2545mm |
| Track Guage | 1600mm |
| Blade Height | 340mm |
| Track Pad Width | 400mm |
| Min Ground Clearence | 330mm |
| Tail Swing Radius | 1640mm |
| Engine | |
| Displacment | 3320 cc |
|---|---|
| Model | Yanmar 4TNV98C-WSY |
| Type | Water-cooled, 4 cylinder, with commonrail and DPF |
| Emission Standard | Stage V |
| Rated Power | 42.4 kW |
| Filling Quantities | |
| Fuel Tank | 130 litres |
|---|---|
| Engine Coolant | 5.6 litres |
| Engine Oil | 9.6 litres |
| Hydraulic Oil Tank | 85 litres |
| Hydraulic System | |
| Max Oil Flow, | 142.7l/min |
|---|---|
| Main Safety Valve | 24.5 MPa |
| Traction Drive | Variable displacement axial piston motor |
| Swing Motor | Axial piston motor |
| Max Oil Flow (AUX 1) | 90 l/min |
| Operating Wegiht | |
| Operating Weight | 6100 kg |
|---|---|
| Rated Power | |
| Swing Speed | 9.6 rpm |
|---|---|
| Max Travel Speeds | Fast 3.7 km/h, slow 2.4 km/h |
| Max Traction Force | 47.2 kN |
| Gradeability | 35 degrees |
| Undercarriage and Superstructure | |
| Bottom Rollers | 5 |
|---|---|
| Top Rollers | 1 |
| Boom Length | 3000mm |
| Arm Length | 1700mm |
| Working Area | |
| Max Vertical Digging Depth | 3180mm |
|---|---|
| Min Swing Radius | 2555mm |
| Max Digging Reach | 6320mm |
| Max Digging Depth | 3950mm |
| Max Digging Height | 5790mm |
| Max Dumping Height | 4060mm |
