Demolition Excavators

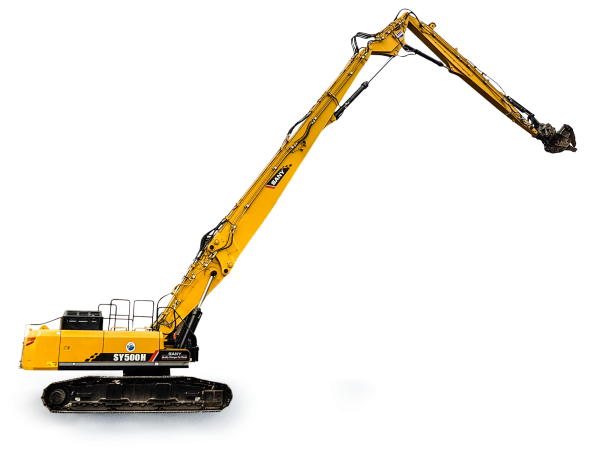

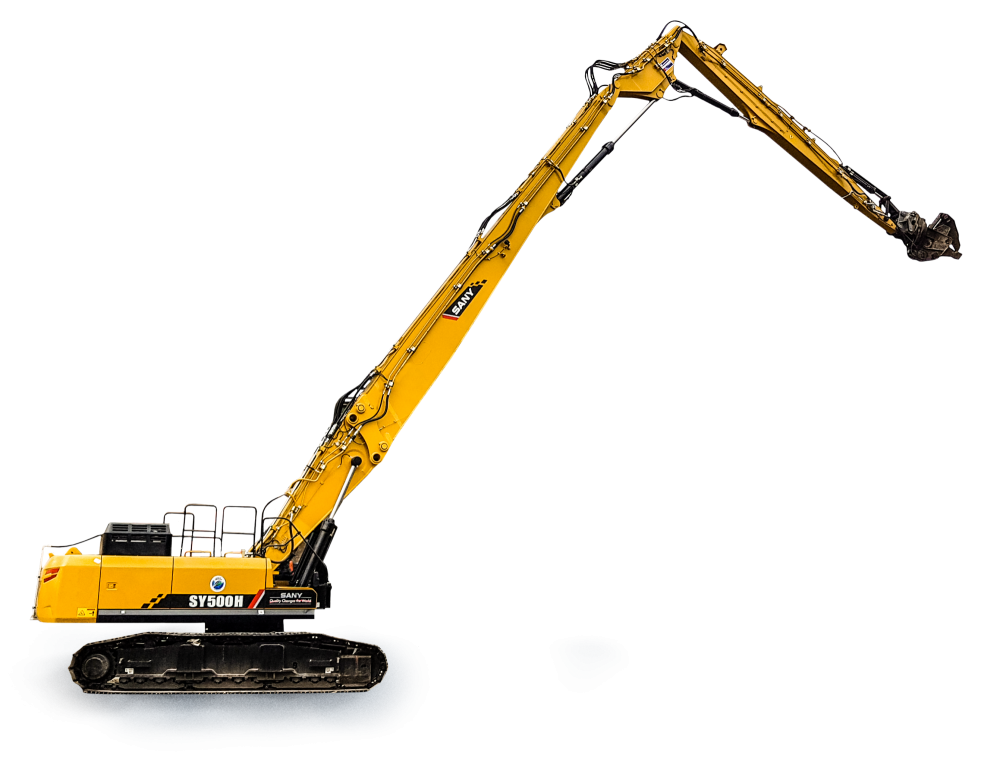

SANY SY500HRD
INDUSTRY LEADING 5-YEAR WARRANTY
Designed for maximum productivity and endurance, the SANY SY500HRD impresses with its robust design and its versatility. With its extra-long boom, it takes the demolition tools to a whole new level. And, thanks to the hydraulically extendable chassis, it achieves outstanding stability, even when things get really tough.
– Powerful Stage V CUMMINS engine
– Telescopic chassis for optimum stability and high-reach 28m boom
– Tilting operator‘s cab for optimal visibility
– 5 year warranty for complete peace of mind
Technical Specs
| Dimensions | |
| Track Height | 1134mm |
|---|---|
| Rear Weight Ground Clearence | 1295mm |
| Bonnet Height | 3100mm |
| Tail Swing Radius | 4126mm |
| Distance (Centre) Track Sprocket to IOdler Sprocket | 5000mm |
| Overal Length | 20000mm High Reach13200mm Standard Arm8500mm w/o Arm |
| Total Width | 3400mm |
| Total Width of Superstructure | 3292mm |
| Overall Height Above Cab | 3476mm |
| Overall Height of The Boom | 3600mm High Reach3950mm Standard Arm |
| Undercarriage Length | 5930mm |
| Rear Length | 4065mm |
| Track Pad Width | 800mm |
| Track Guage | 2400mm High Reach3700mm Standard Arm |
| Min Ground Clearence | 451mm |
| Engine | |
| Model | CUMMINS QSX12 |
|---|---|
| Type | Water-cooled, 6 cylinder, with commonrail and Adblue |
| Emission Standard | Stage V |
| Rated Power | 298 KW / 2100 rpm |
| Max Torque | 2034 Nm / 1400 rpm |
| Displacment | 11800 ccm |
| Batteries | 2 x 12v 200 Ah |
| Filling Quantities | |
| Fuel Tank | 680 litres |
|---|---|
| Engine Coolant | 49.19 litres |
| Engine Oil | 33 litres |
| Traction Drive (Per Side) | 15 litres |
| AdBlue | 46.3 litres |
| Hydraulic Oil Tank | 500 litres |
| Hydraulic System | |
| Traction Drive | Variable displacement axial piston motor |
|---|---|
| Swing Motor | Axial piston motor |
| Main Pump | 2 x variable-piston-pump with electronic positive control |
| Max Oil Flow, | 2 x 360 l/min |
| Operating Wegiht | |
| Operating Weight | 64000 kg High Reach54000 kg Standard Arm41000 kg w/o Arm |
|---|---|
| Pressure Limiting Valves | |
| Implement Circuit | 343 bar |
|---|---|
| Power Boost | 373 bar |
| Swing Circuit | 269 bar |
| Driving Circuit | 343 bar |
| Pre-Control Circuit | 39 bar |
| Rated Power | |
| Ground Pressure | 0.74 kg/cm² (0.62 kg/cm² *) |
|---|---|
| Gradeability | 10 degrees |
| Swing Speed | 6 rpm |
| Max Travel Speeds | 1.4 km/h |
| Max Traction Force | 665 kN |
| Undercarriage and Superstructure | |
| Boom Length | 15200 / 2700mm (standard 7782mm) |
|---|---|
| Arm Length | 8500 mm (standard 3350mm) |
| Bottom Rollers | 12 |
| Top Rollers | 2 |
| Swinging Gear | Planetart gear driven by an axial piston engine, hydraulically triggered automatic parking brake |
| Working Area | |
| Max Digging Reach | 15285mm High Reach12712mm Standard Arm |
|---|---|
| Max Digging Height | 28150mm High Reach12440mm Standrad Arm |
| Max Dumping Height | 9075mm Standard Arm |
| Min Dumping Height | 7575mm High Reach |
| Overall Height at Min Swing Radius | 10331mm Standard Arm |
| Min Swing Radius | 5470mm High Reach4670mm Standard Arm |
