Crawler Excavators

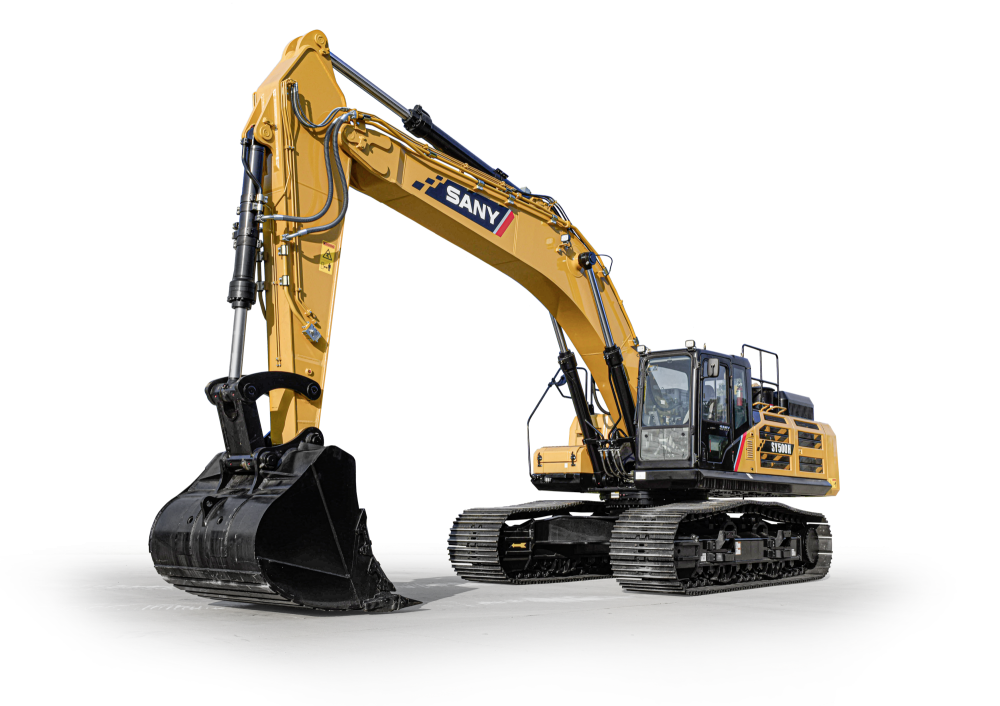

SANY SY500H
INDUSTRY LEADING 5-YEAR WARRANTY
The SANY SY500H has been designed for maximum productivity under continuous stress. The machine’s sturdy design and special chassis result in outstanding stability and it doesn’t just impress with its performance. When it comes to equipment, this machine is in the top class. Everything you would expect from an excavator in the 50–tonne class is included on-board as standard.
– Powerful Stage V CUMMINS engine
– Comfortable ROPS/FOPS certified operators cab
– 5 year warranty for complete peace of mind
Technical Specs
| Dimensions | |
| Rear Length | 3740mm |
|---|---|
| Track Guage | 2740mm |
| Track Height | 1220mm |
| Track Pad Width | 700mm |
| Min Ground Clearence | 560mm |
| Rear Weight Ground Clearence | 1355mm |
| Bonnet Height | 3160mm |
| Tail Swing Radius | 3740mm |
| Overal Length | 12100mm |
| Distance (Centre) Track Sprocket to IOdler Sprocket | 4410mm |
| Total Width | 3700mm |
| Total Width of Superstructure | 3300mm |
| Overall Height Above Cab | 3480mm |
| Overall Height of The Boom | 3600mm |
| Undercarriage Length | 5460mm |
| Engine | |
| Model | CUMMINS QSX12 |
|---|---|
| Type | Water-cooled, 6 cylinder, with commonrail and Adblue |
| Emission Standard | Stage V |
| Rated Power | 298 KW / 2100 rpm |
| Max Torque | 2034 Nm / 1400 rpm |
| Displacment | 11800 ccm |
| Batteries | 2 x 12v 120 Ah |
| Filling Quantities | |
| Fuel Tank | 680 litres |
|---|---|
| Engine Coolant | 50 litres |
| Engine Oil | 34 litres |
| Traction Drive (Per Side) | 15 litres |
| AdBlue | 46 litres |
| Hydraulic Oil Tank | 480 litres |
| Hydraulic System | |
| Swing Motor | Axial piston motor |
|---|---|
| Main Pump | 2 x variable-piston-pump with electronic positive control |
| Max Oil Flow, | 2 x 360 l/min |
| Traction Drive | Variable displacement axial piston motor |
| Operating Wegiht | |
| Operating Weight | 53300 kg |
|---|---|
| Pressure Limiting Valves | |
| Implement Circuit | 350 bar |
|---|---|
| Power Boost | 370 bar |
| Swing Circuit | 270 bar |
| Driving Circuit | 350 bar |
| Pre-Control Circuit | 40 bar |
| Rated Power | |
| Ground Pressure | 0.83 kg/cm² |
|---|---|
| Gradeability | 35 degrees |
| Bucket Digging Force ISO | 260 kN |
| Arm Digging Force ISO | 230 kN |
| Swing Speed | 8 rpm |
| Max Travel Speeds | Fast 5.4 km/h, slow 3.1 km/h |
| Max Traction Force | 339 kN |
| Bucket Capacity | 2.2-3.5m³ |
| Undercarriage and Superstructure | |
| Boom Length | 6500mm |
|---|---|
| Arm Length | 2500mm |
| Bottom Rollers | 9 |
| Top Rollers | 2 |
| Swinging Gear | Planetary gear reducer driven by an axial piston motor, automatic hydraulic released slewing brake |
| Working Area | |
| Max Vertical Digging Depth | 6280mm |
|---|---|
| Overall Height at Min Swing Radius | 9105mm |
| Min Swing Radius | 5216mm |
| Max Digging Reach | 12035mm |
| Max Digging Depth | 7705mm |
| Max Digging Height | 10930mm |
| Max Dumping Height | 7650mm |
