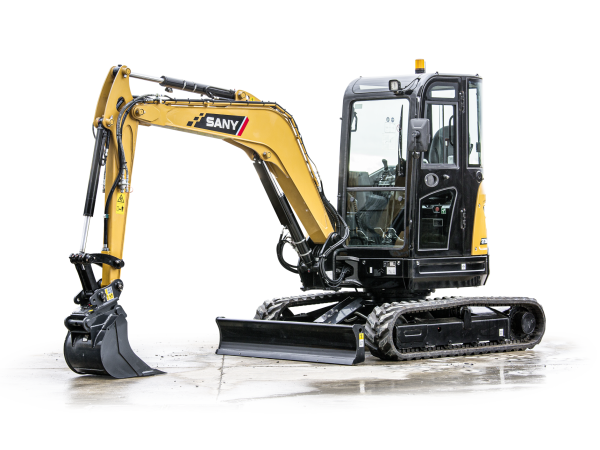

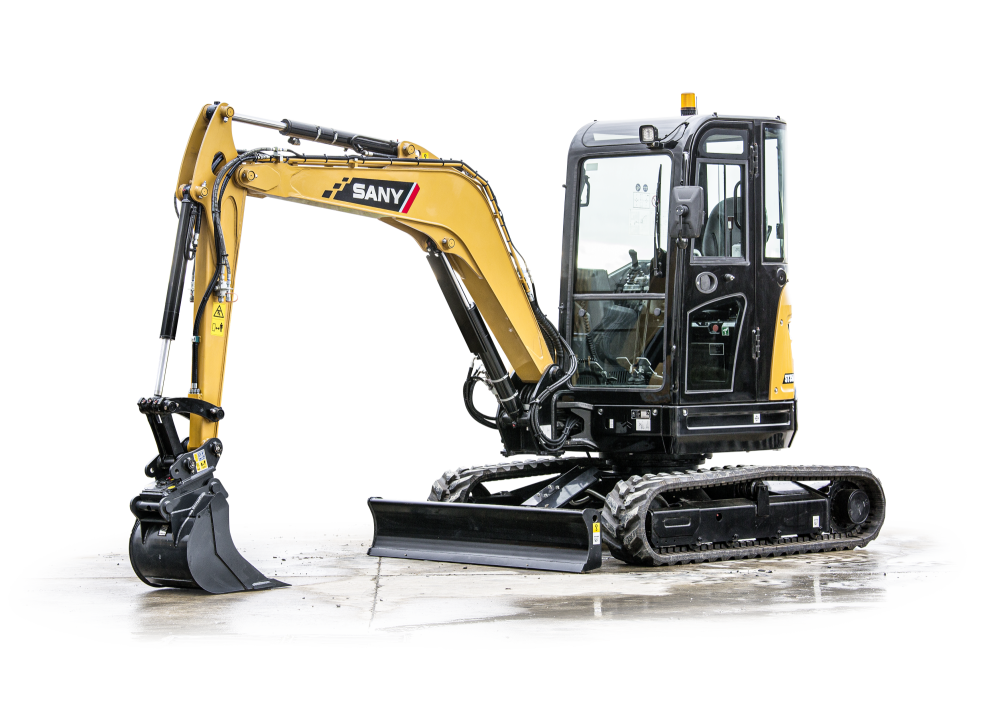

SANY SY35U
INDUSTRY LEADING 5-YEAR WARRANTY
The SANY SY35U zero-tail-swing excavator is a little powerhouse! Its compact dimensions make it the perfect tool wherever power and manoeuvrability need to come together. It can be equipped with attachments such as a hammer or grapple for maximum versatility on construction sites as well as in smaller demolition and civil engineering works.
– Zero tail swing mini excavator
– Stage V YANMAR 3TNV88F engine and advanced load-sensing hydraulic system
– 5 year warranty for complete peace of mind
Technical Specs
| Dimensions | |
| Overal Length | 4915mm |
|---|---|
| Rear Length | 860mm |
| Total Width | 1720mm |
| Track Guage | 1420mm |
| Total Width of Superstructure | 1548mm |
| Undercarriage Width (With Blade) | 1720mm |
| Overall Height Above Cab | 2515mm |
| Horizontal Clearence to Blade | 1500mm |
| Blade Height | 350mm |
| Track Height | 520mm |
| Track Pad Width | 300mm |
| Min Ground Clearence | 295mm |
| Rear Weight Ground Clearence | 560mm |
| Bonnet Height | 1550mm |
| Tail Swing Radius | 860mm |
| Distance (Centre) Track Sprocket to IOdler Sprocket | 1670mm |
| Overall Height of The Boom | 1800mm |
| Undercarriage Length | 2155mm |
| Engine | |
| Batteries | 1 x 12v 80 Ah |
|---|---|
| Model | Yanmar 3TNV88F |
| Type | Water-cooled four-stroke diesel engine with turbulence chamber fuel injection |
| Emission Standard | Stage V |
| Rated Power | 18.2 kW / 2200 rpm |
| Max Torque | 91.4 Nm / 1320 rpm |
| Displacment | 1642 ccm |
| Filling Quantities | |
| Hydraulic Oil Tank | 40 litres |
|---|---|
| Fuel Tank | 50 litres |
| Engine Coolant | 6.5 litres |
| Engine Oil | 6.7 litres |
| Traction Drive (Per Side) | 0.7 litres |
| Hydrauylic System | 55 litres |
| Hydraulic System | |
| Main Pump | Variable displacement axial piston pump |
|---|---|
| Max Oil Flow, | 88 l/min |
| Traction Drive | Variable displacement axial piston motor |
| Swing Motor | Axial piston motor |
| Max Oil Flow (AUX 1) | 70 l/min |
| Max Oil Flow (AUX 2) | 70 l/min |
| Operating Wegiht | |
| Operating Weight | 3680 kg |
|---|---|
| Pressure Limiting Valves | |
| Boom Circtuit | 245 bar |
|---|---|
| Swing Circuit | 206 bar |
| Driving Circuit | 245 bar |
| Pre-Control Circuit | 35 bar |
| Rated Power | |
| Swing Speed | 9 rpm |
|---|---|
| Max Travel Speeds | Fast 4.4 km/h, slow 2.4 km/h |
| Max Traction Force | 42.5 kN |
| Bucket Capacity | 0.12 m³ |
| Ground Pressure | 0.32 kg/cm² |
| Gradeability | 30 degrees |
| Bucket Digging Force ISO | 30.4 kN |
| Arm Digging Force ISO | 18.2 kN |
| Undercarriage and Superstructure | |
| Boom Length | 2540mm |
|---|---|
| Arm Length | 1400mm |
| Bottom Rollers | 4 |
| Top Rollers | 1 |
| Swinging Gear | Axial piston motor with planetary gear running in oil batrh and single-row slewing ring. Spring loaded slewing gear parking brake, hydraulically released. |
| Undercarriage | Reinforced lower structure with larger dimensions. Welded driove frame in box design made of special material. Side frame welded to drive frame. |
| Working Area | |
| Min Dumping Height | 1210mm |
|---|---|
| Max Vertical Digging Depth | 2700mm |
| Overall Height at Min Swing Radius | 3690mm |
| Arm Head Separation for Max. Working Equipment Retraction | 1955mm |
| Swing Radius with Swing Frame (L) | 2245mm |
| Swing Radius with Swing Frame (R) | 2140mm |
| Min Swing Radius | 2475mm |
| Max Ground Clearence of Blade Up | 375mm |
| Max Depth of Blade Down | 370mm |
| Swing Frame Offset (L) | 645mm |
| Swing Frame Offset (R) | 725mm |
| Max Boom Swing Angle (L) | 57 degrees |
| Max Digging Reach | 5465mm |
| Max Boom Swing Angle (R) | 63 degrees |
| Max Digging Depth | 3105mm |
| Max Digging Height | 4855mm |
| Max Dumping Height | 3460mm |
