Crawler Excavators

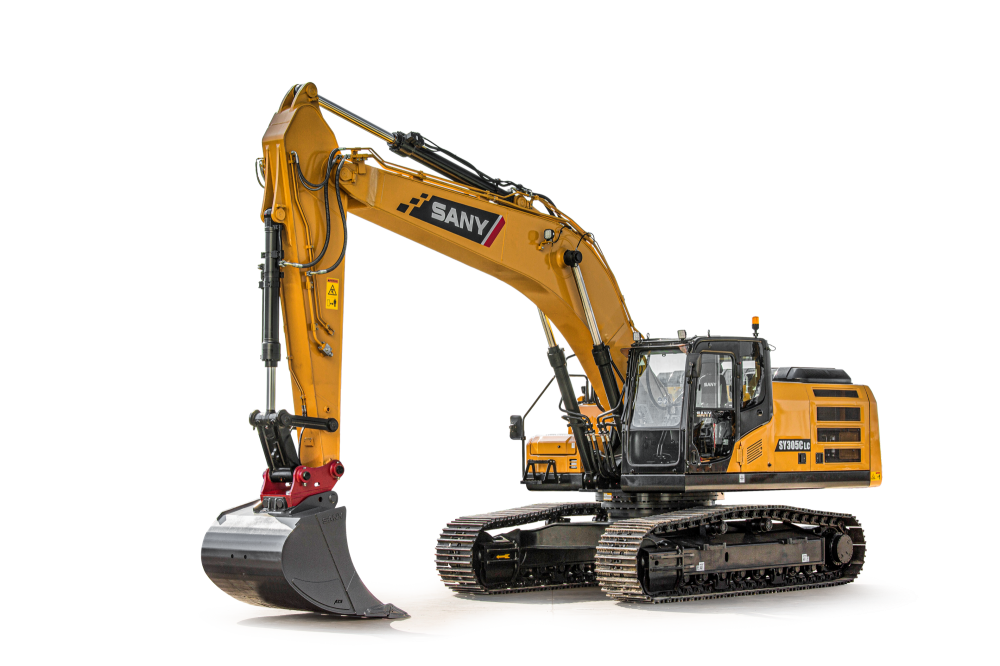

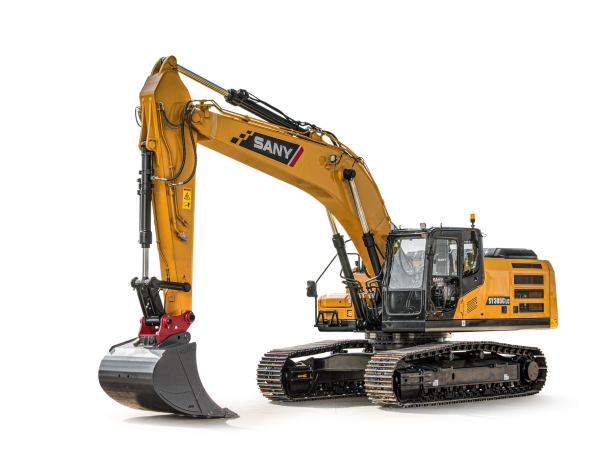

SANY SY305C
INDUSTRY LEADING 5-YEAR WARRANTY
The SANY SY305C works powerfully wherever maximum performance is required for excavation work and in civil engineering. The machine‘s high-quality technology and robust components form the basis for reliable and quick operation.
– Powerful Stage V CUMMINS engine and efficient Kawasaki hydraulic system
– Comfortable operators cab with optimal visibility
– 5 year warranty for complete peace of mind
Technical Specs
| Dimensions | |
| Overal Length | 10667mm |
|---|---|
| Width with 700mm Track Pads | 3190mm |
| Width with 600mm Track Pads | 2990mm |
| Total Width of Superstructure | 2986mm |
| Overall Height Above Cab | 3280mm |
| Overall Height of The Boom | 3470mm |
| Undercarriage Length | 4840mm |
| Rear Length | 3315mm |
| Track Guage | 2390mm 600mm pads, 2590mm 700mm pads |
| Track Height | 1025mm |
| Track Pad Width | 600mm / 700mm / 800mm |
| Min Ground Clearence | 470mm |
| Rear Weight Ground Clearence | 1045mm |
| Bonnet Height | 2640mm |
| Distance (Centre) Track Sprocket to IOdler Sprocket | 3916mm |
| Engine | |
| Max Torque | 1472 Nm / 1400 rpm |
|---|---|
| Displacment | 8900 ccm |
| Batteries | 2 x 12v 120 Ah |
| Model | CUMMINS QSL-9-C280 |
| Type | Water-cooled, 6 cylinder, with commonrail and Adblue |
| Emission Standard | Stage V |
| Rated Power | 209 KW / 2100 rpm |
| Filling Quantities | |
| Traction Drive (Per Side) | 10.5 litres |
|---|---|
| AdBlue | 85 litres |
| Hydraulic Oil Tank | 300 litres |
| Fuel Tank | 430 litres |
| Engine Coolant | 35 litres |
| Engine Oil | 21 litres |
| Hydraulic System | |
| Main Pump | 2 x variable-piston-pump with electronic positive control |
|---|---|
| Max Oil Flow, | 2 x 280 l/min |
| Traction Drive | Variable displacement axial piston motor |
| Swing Motor | Axial piston motor |
| Max Oil Flow (AUX 1) | 500 l/min |
| Operating Wegiht | |
| Operating Weight | 32265 kg |
|---|---|
| Pressure Limiting Valves | |
| Implement Circuit | 343 bar |
|---|---|
| Power Boost | 373 bar |
| Swing Circuit | 275 bar |
| Driving Circuit | 343 bar |
| Pre-Control Circuit | 39 bar |
| Rated Power | |
| Swing Speed | 9 rpm |
|---|---|
| Max Travel Speeds | Fast 5.2 km/h, slow 3.4 km/h |
| Max Traction Force | 245 kN |
| Bucket Capacity | 1.7m³ |
| Ground Pressure | 0.60 kg/cm² |
| Gradeability | 35 degrees |
| Bucket Digging Force ISO | 204 kN |
| Arm Digging Force ISO | 153 kN |
| Undercarriage and Superstructure | |
| Boom Length | 6150mm |
|---|---|
| Arm Length | 3200mm |
| Bottom Rollers | 9 |
| Top Rollers | 2 |
| Swinging Gear | Planetary gear reducer driven by an axial piston motor, automatic hydraulic released slewing brake |
| Working Area | |
| Max Digging Reach | 10870mm |
|---|---|
| Max Digging Depth | 6815mm |
| Max Digging Height | 10497mm |
| Max Dumping Height | 7359mm |
| Min Dumping Height | 2450mm |
| Max Vertical Digging Depth | 5800mm |
| Overall Height at Min Swing Radius | 8405mm |
| Min Swing Radius | 4000mm |
