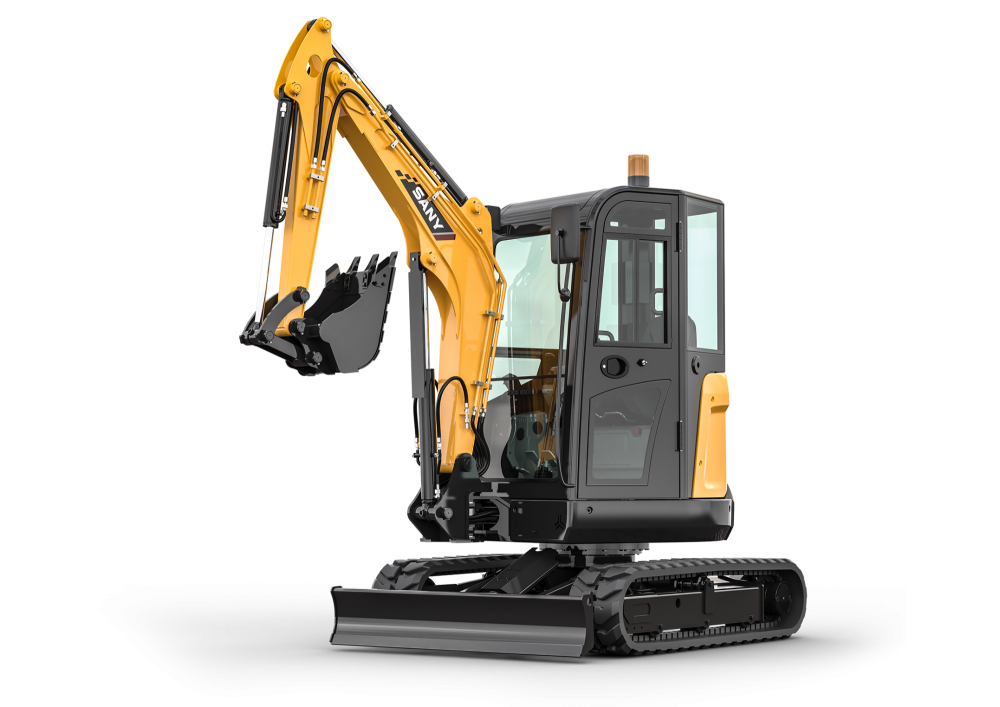

SANY SY26U
INDUSTRY LEADING 5-YEAR WARRANTY
Reliable and easily transportable, the SY26U mini excavator with zero tail swing brings big performance and allows you to work with confidence in tight areas. With its powerful Yanmar engine and efficient load sensing hydraulic system the SY26U is built to minimise operating expenses and maximize uptime.
– Zero tail swing mini excavator
– Easily towable with secure tie down points for safe transportation
– 5 year warranty for complete peace of mind
Technical Specs
| Dimensions | |
| Overall Height of The Boom | 1630mm |
|---|---|
| Rear Length | 775mm |
| Track Guage | 1250mm |
| Undercarriage Width (With Blade) | 1550mm |
| Track Height | 445mm |
| Horizontal Clearence to Blade | 1295mm |
| Track Pad Width | 300mm |
| Blade Height | 300mm |
| Min Ground Clearence | 290mm |
| Rear Weight Ground Clearence | 555mm |
| Bonnet Height | 1460mm |
| Tail Swing Radius | 775mm |
| Distance (Centre) Track Sprocket to IOdler Sprocket | 1560mm |
| Overal Length | 4285mm |
| Total Width | 1550mm |
| Overall Height Above Cab | 2430mm |
| Engine | |
| Max Torque | 65.6 Nm / 1793 rpm |
|---|---|
| Displacment | 1267 cc |
| Batteries | 1 x 12v 60 Ah |
| Model | Yanmar 3TNV80F |
| Type | Water-cooled 4-stroke diesel engine with turbulence-chamber injection |
| Emission Standard | Stage V |
| Rated Power | 14.6 kW / 2400 rpm |
| Filling Quantities | |
| Fuel Tank | 34 litres |
|---|---|
| Engine Coolant | 4.1 litres |
| Engine Oil | 3.4 litres |
| Traction Drive (Per Side) | 0.6 litres |
| Hydrauylic System | 45 litres |
| Hydraulic System | |
| Main Pump | Variable displacement axial piston pump |
|---|---|
| Max Oil Flow, | 81 l/min |
| Swing Motor | Axial piston motor |
| Max Oil Flow (AUX 1) | 42.5 l/min |
| Operating Wegiht | |
| Operating Weight | 2760 kg (2700 kg Canopy) |
|---|---|
| Pressure Limiting Valves | |
| Boom Circtuit | 245 bar |
|---|---|
| Swing Circuit | 196 bar |
| Driving Circuit | 245 bar |
| Pre-Control Circuit | 35 bar |
| Rated Power | |
| Swing Speed | 10 rpm |
|---|---|
| Max Travel Speeds | Fast 4.5 km/h, slow 2.6 km/h |
| Max Traction Force | 20 kN |
| Bucket Capacity | 0.06 m³ |
| Bucket Digging Force ISO | 27.9 kN |
| Arm Digging Force ISO | 14.2 kN |
| Undercarriage and Superstructure | |
| Boom Length | 2100mm |
|---|---|
| Arm Length | 1300mm |
| Bottom Rollers | 3 |
| Top Rollers | 1 |
| Swinging Gear | Axial piston motor with planetary gear running in oil batrh and single-row slewing ring. Spring loaded slewing gear parking brake, hydraulically released. |
| Undercarriage | Reinforced lower structure with larger dimensions. Welded driove frame in box design made of special material. Side frame welded to drive frame. |
| Working Area | |
| Overall Height at Min Swing Radius | 3200mm |
|---|---|
| Arm Head Separation for Max. Working Equipment Retraction | 1490mm |
| Swing Radius with Swing Frame (L) | 1760mm |
| Swing Radius with Swing Frame (R) | 1795mm |
| Min Swing Radius | 2110mm |
| Max Ground Clearence of Blade Up | 360mm |
| Max Depth of Blade Down | 380mm |
| Swing Frame Offset (L) | 765mm |
| Swing Frame Offset (R) | 508mm |
| Max Boom Swing Angle (L) | 65 degrees |
| Max Boom Swing Angle (R) | 45 degrees |
| Max Digging Reach | 4850mm |
| Max Digging Depth | 2820mm |
| Max Digging Height | 4410mm |
| Max Dumping Height | 3100mm |
| Min Dumping Height | 940mm |
| Max Vertical Digging Depth | 2585mm |
