SANY SY26C
INDUSTRY LEADING 5-YEAR WARRANTY

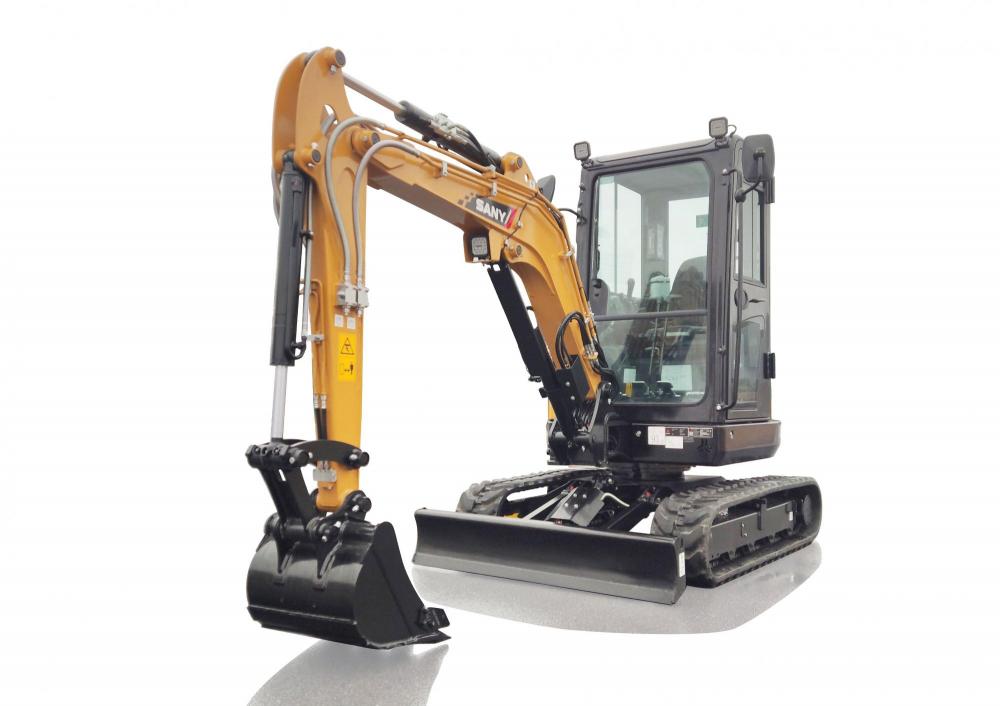

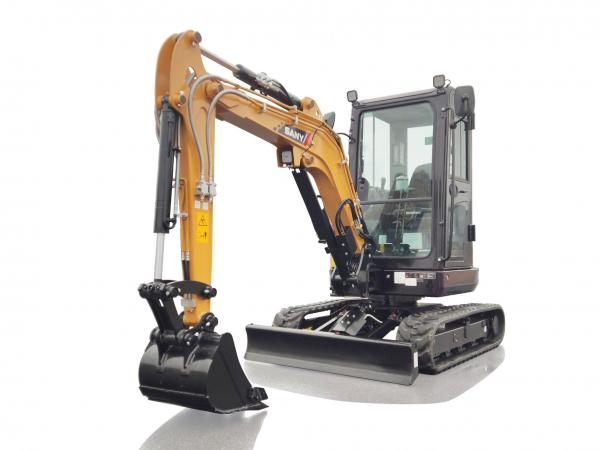

The SY26C mini excavator operates with a reduced tail swing offering that perfect combination of compact size and powerful performance. The ideal solution for construction, landscaping, agriculture and small jobsites, it allows you to work and load in areas where space might be limited.
– Short tail swing mini excavator
– Easily towable with secure tie down points for safe transportation
– 5 year warranty for complete peace of mind
Technical Specs
| Dimensions | |
| Overall Height Above Cab | 2410mm |
|---|---|
| Blade Height | 300mm |
| Track Pad Width | 300mm |
| Min Ground Clearence | 290mm |
| Tail Swing Radius | 915mm |
| Overal Length | 4160mm |
| Total Width | 1550mm |
| Engine | |
| Model | Yanmar 3TNV80F |
|---|---|
| Type | Water-cooled 4-stroke diesel engine with turbulence-chamber injection |
| Emission Standard | Stage V |
| Rated Power | 14.6 kW / 2400 rpm |
| Displacment | 1267 cc |
| Filling Quantities | |
| Fuel Tank | 34 litres |
|---|---|
| Engine Coolant | 4.1 litres |
| Engine Oil | 3.4 litres |
| Hydraulic Oil Tank | 30 litres |
| Hydraulic System | |
| Max Oil Flow, | 78 l/min |
|---|---|
| Main Safety Valve | 24.5 MPa |
| Swing Motor | Axial piston motor |
| Max Oil Flow (AUX 1) | 42.5 l/min |
| Operating Wegiht | |
| Operating Weight | 2775 kg |
|---|---|
| Rated Power | |
| Swing Speed | 10 rpm |
|---|---|
| Max Travel Speeds | Fast 4.5 km/h, slow 2.6 km/h |
| Ground Pressure | 26 kPa |
| Undercarriage and Superstructure | |
| Boom Length | 2100mm |
|---|---|
| Arm Length | 1300mm |
| Bottom Rollers | 3 |
| Top Rollers | 1 |
| Swinging Gear | Axial piston motor with planetary gear running in oil batrh and single-row slewing ring. Spring loaded slewing gear parking brake, hydraulically released. |
| Undercarriage | Reinforced lower structure with larger dimensions. Welded driove frame in box design made of special material. Side frame welded to drive frame. |
| Working Area | |
| Max Digging Reach | 4710mm |
|---|---|
| Max Digging Depth | 2810mm |
| Max Digging Height | 4405mm |
| Max Dumping Height | 3130mm |
| Max Vertical Digging Depth | 2210mm |
| Min Swing Radius | 1985mm |
