Crawler Excavators

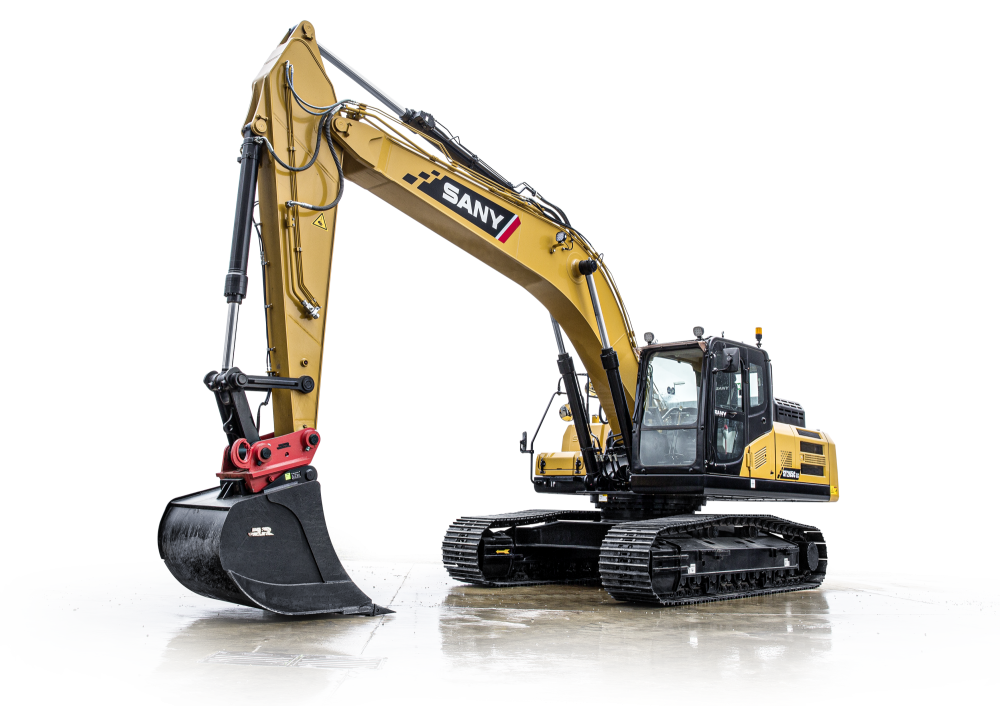

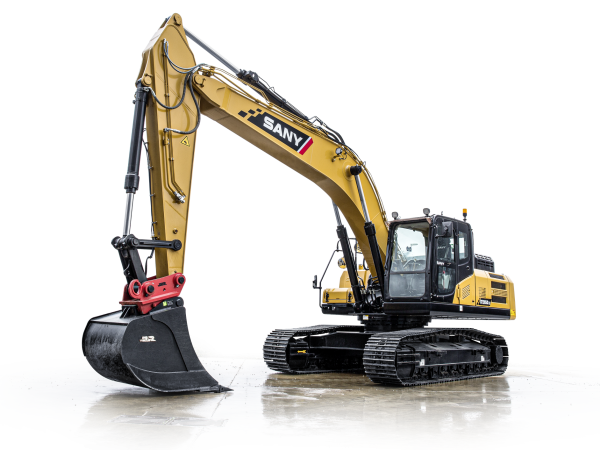

SANY SY265C
INDUSTRY LEADING 5-YEAR WARRANTY
The SY265C excavator brings new meaning to the term ‘flexibility“. It is ideal for carrying out a wide range of tasks whether in road construction, materials handling or demolition work. Its drive and hydraulics leave nothing to be desired and combine power, reliability and precision for impressive productivity. Just as you would expect from an excavator within this category.
– Stage V CUMMINS engine and finely tuned Kawasaki hydraulic system
– Comfortable ROPS/FOPS certified operators cab
– 5 year warranty for complete peace of mind
Technical Specs
| Dimensions | |
| Overall Height Above Cab | 3080mm |
|---|---|
| Track Pad Width | 600mm / 700mm / 800mm |
| Overall Height of The Boom | 3195mm |
| Min Ground Clearence | 470mm |
| Undercarriage Length | 4636mm |
| Rear Weight Ground Clearence | 1045mm |
| Rear Length | 3105mm |
| Bonnet Height | 2640mm |
| Tail Swing Radius | 3105mm |
| Distance (Centre) Track Sprocket to IOdler Sprocket | 3833mm |
| Overal Length | 10290mm |
| Track Guage | 2490mm |
| Width with 700mm Track Pads | 2390mm |
| Total Width of Superstructure | 3045mm |
| Track Height | 945mm |
| Engine | |
| Batteries | 2 x 12v 120 Ah |
|---|---|
| Model | CUMMINS QSB6.7 |
| Type | Water-cooled, 6 cylinder, with commonrail and Adblue |
| Emission Standard | Stage V |
| Rated Power | 145 kW / 2000 rpm |
| Max Torque | 1472 Nm / 1400 rpm |
| Displacment | 6700 ccm |
| Filling Quantities | |
| Fuel Tank | 465 litres |
|---|---|
| Engine Coolant | 40 litres |
| Engine Oil | 27 litres |
| Traction Drive (Per Side) | 7.8 litres |
| AdBlue | 38 litres |
| Hydraulic System | |
| Main Pump | 2 x variable-piston-pump with electronic positive control |
|---|---|
| Max Oil Flow, | 2x 260 l/min |
| Traction Drive | 2 speed axial piston motor with planetary reducer and automatic multi-disc brake |
| Swing Motor | Axial piston motor with planetary reducer and automatic holding brake |
| Operating Wegiht | |
| Operating Weight | 27000 kg |
|---|---|
| Pressure Limiting Valves | |
| Implement Circuit | 343 bar |
|---|---|
| Power Boost | 373 bar |
| Swing Circuit | 290 bar |
| Driving Circuit | 343 bar |
| Pre-Control Circuit | 39 bar |
| Rated Power | |
| Max Travel Speeds | Fast 5.5 km/h, slow 3.7 km/h |
|---|---|
| Max Traction Force | 227 kN |
| Bucket Capacity | 1.3m³ |
| Ground Pressure | 39.3 kpa |
| Gradeability | 35 degrees |
| Bucket Digging Force ISO | 187 kN |
| Arm Digging Force ISO | 130 kN |
| Swing Speed | 10.6 rpm |
| Undercarriage and Superstructure | |
| Boom Length | 5900mm |
|---|---|
| Arm Length | 2950mm |
| Bottom Rollers | 9 |
| Top Rollers | 2 |
| Swinging Gear | Planetary gear reducer driven by an axial piston motor, automatic hydraulic released slewing brake |
| Working Area | |
| Max Digging Reach | 10225mm |
|---|---|
| Max Digging Depth | 6705mm |
| Max Digging Height | 9745mm |
| Max Dumping Height | 6715mm |
| Min Dumping Height | 2490mm |
| Max Vertical Digging Depth | 5675mm |
| Overall Height at Min Swing Radius | 8020mm |
| Min Swing Radius | 3800mm |
