Crawler Excavators

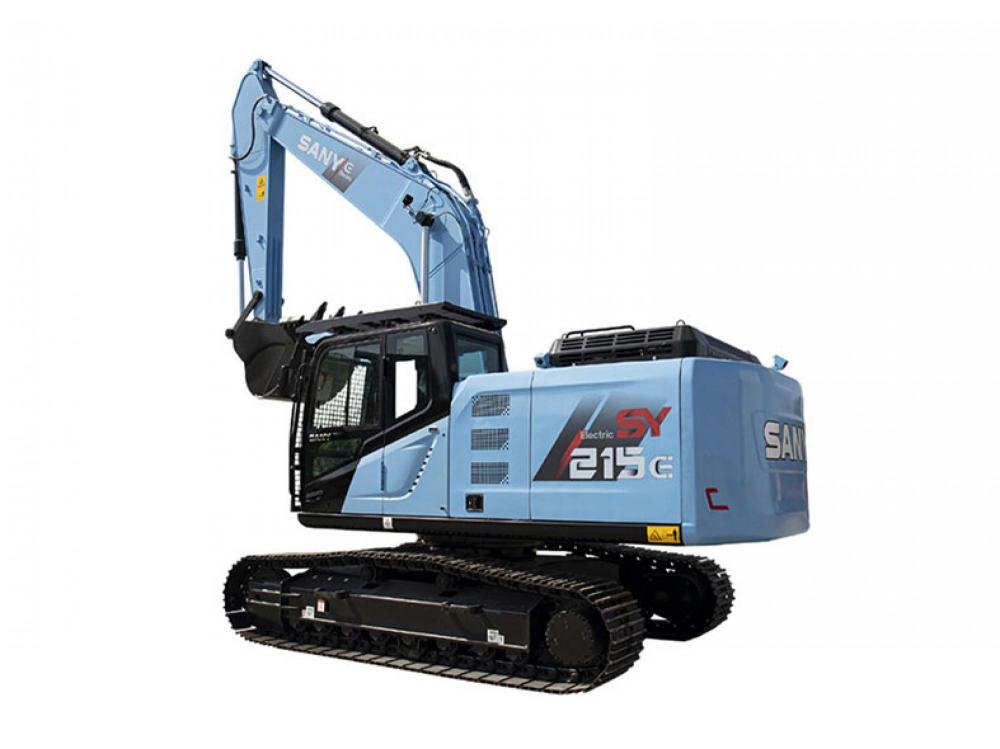

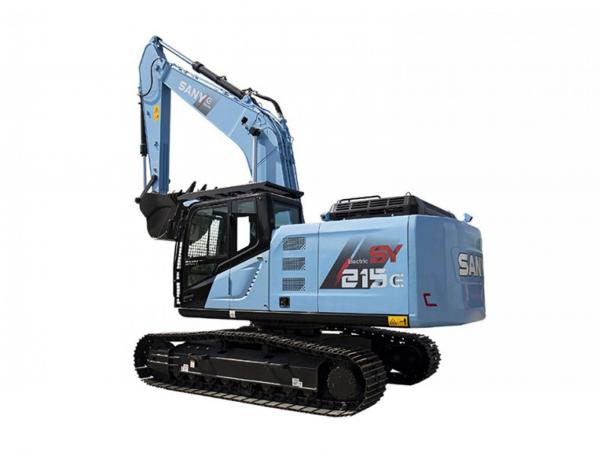

SANY SY215E
INDUSTRY LEADING 5-YEAR WARRANTY
The 23-tonne SY215E electric excavator allows you to work with zero emissions, low noise levels and a lower total cost of ownership thanks to its reduced maintenance costs. Powered by a state-of-the-art lithium iron phosphate (cobalt free) battery, this versatile machine has been designed with a fully flexible, automotive standard (CCS2) charging solution and can achieve a full days work (6 – 8 hrs) off a single charge.
– Emission-free performance
– Equipped with a lithium iron phosphate (cobalt free) battery
– 5 year warranty for complete peace of mind
Technical Specs
| Battery | |
| Max Rated Power | 150 kW |
|---|---|
| Max Torque | 1500 Nm |
| Battery Type / Voltage | Lithium Iron Phosphate Battery (Cobalt Free) |
| Rated Voltage | 618v |
| Rated Capacity | 684 Ah |
| Fully Charged Battery Capacity | 422 kWh |
| Dimensions | |
| Overal Length | 9910mm |
|---|---|
| Total Width | 2980mm |
| Total Width of Superstructure | 2875mm |
| Overall Height Above Cab | 3440mm |
| Track Guage | 2380mm |
| Blade Height | 270mm |
| Min Ground Clearence | 440mm |
| Tail Swing Radius | 3125mm |
| Engine | |
| Emission Standard | Stage V |
|---|---|
| Operating Wegiht | |
| Operating Weight | 23200 kg |
|---|---|
| Rated Power | |
| Swing Speed | 12.5 rpm |
|---|---|
| Max Travel Speeds | Fast 5.4 km/h, slow 3.3 km/h |
| Bucket Capacity | 1.1m³ |
| Bucket Digging Force ISO | 138 kN |
| Arm Digging Force ISO | 103 kN |
| Working Area | |
| Max Digging Depth | 6255mm |
|---|---|
| Max Digging Height | 9600mm |
| Max Dumping Height | 6730mm |
| Min Swing Radius | 3730mm |
