SANY SY215C & SY215C-XD
INDUSTRY LEADING 5-YEAR WARRANTY

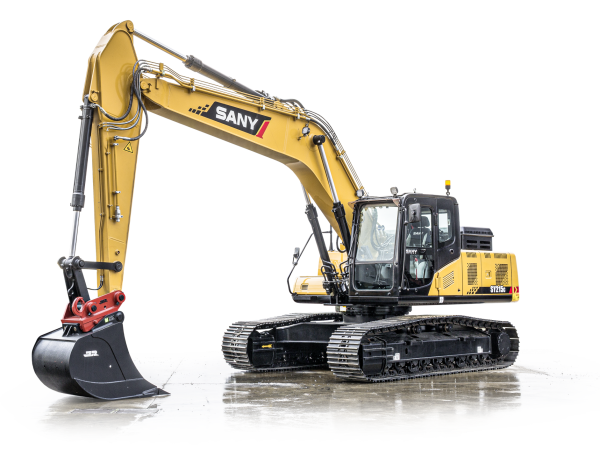

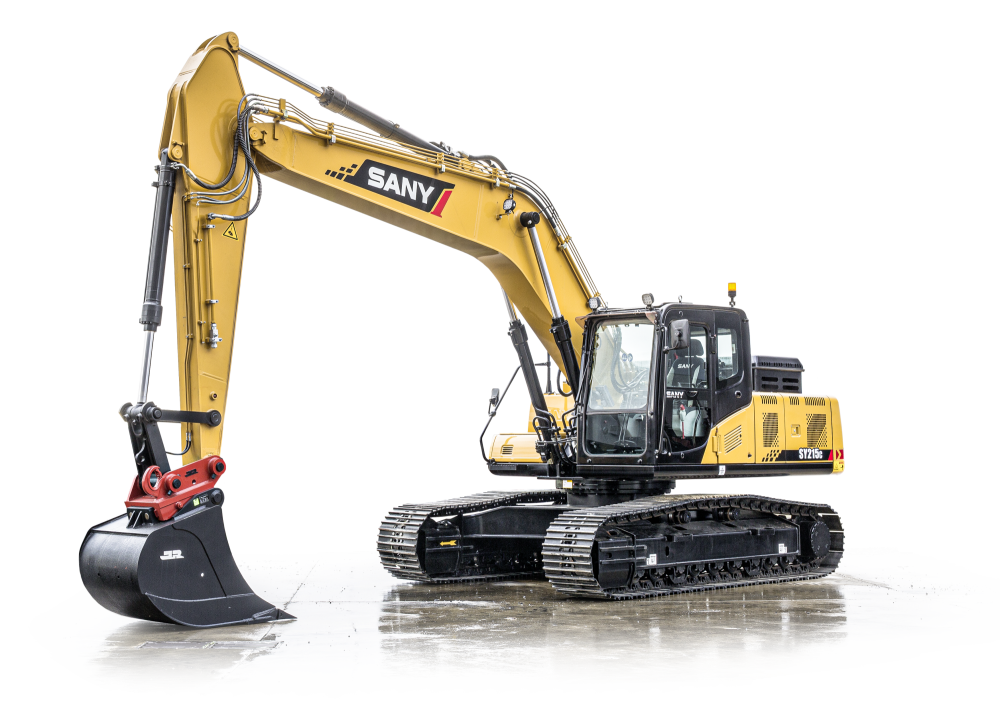

With the SANY SY215C crawler excavator, you get more done. This machine is a real all-rounder and a specialist in every discipline, from quick loading to precise digging and powerful demolition work. What sets it apart is its ability to control its tremendous power with great precision – for maximum productivity and therefore a fast return on investment.
– Stage V CUMMINS engine and finely tuned Kawasaki hydraulic system
– Extremely powerful and offers outstanding driver comfort
– 5 year warranty for complete peace of mind
A demolition specification option (SY215C-XD) is also available. See ‘Specification’ below.
Technical Specs
| Dimensions | |
| Overall Height of The Boom | 3090mm |
|---|---|
| Undercarriage Length | 5173mm |
| Rear Length | 2925mm |
| Track Guage | 2380mm |
| Track Height | 949mm |
| Track Pad Width | 600mm / 700mm / 800mm |
| Min Ground Clearence | 468mm |
| Rear Weight Ground Clearence | 1092mm |
| Overal Length | 9635mm |
| Bonnet Height | 2615mm |
| Width with 600mm Track Pads | 3080mm |
| Tail Swing Radius | 2950mm |
| Total Width of Superstructure | 2753mm |
| Distance (Centre) Track Sprocket to IOdler Sprocket | 3640mm |
| Overall Height Above Cab | 2449mm |
| Engine | |
| Model | CUMMINS QSB6.7 |
|---|---|
| Type | Water-cooled, 6 cylinder, with commonrail and Adblue |
| Emission Standard | Stage V |
| Rated Power | 129 kW / 2200 rpm |
| Max Torque | 1472 Nm / 1400 rpm |
| Displacment | 6700 ccm |
| Batteries | 24v |
| Filling Quantities | |
| Fuel Tank | 370 litres |
|---|---|
| Engine Coolant | 27.6 litre |
| Engine Oil | 27 litres |
| Traction Drive (Per Side) | 5.5 litres |
| AdBlue | 45 litres |
| Hydraulic Oil Tank | 200 litres |
| Hydraulic System | |
| Max Oil Flow, | 2 x 241 l/min |
|---|---|
| Traction Drive | 2 x Axial piston motor with parking brake |
| Swing Motor | Axial piston motor with swing holding brake |
| Main Pump | Variable-capacity piston pump |
| Operating Wegiht | |
| Operating Weight | 24000 kg |
|---|---|
| Pressure Limiting Valves | |
| Implement Circuit | 343 bar |
|---|---|
| Power Boost | 373 bar |
| Swing Circuit | 275 bar |
| Driving Circuit | 343 bar |
| Pre-Control Circuit | 39 bar |
| Rated Power | |
| Max Traction Force | 191 kN |
|---|---|
| Bucket Capacity | 1.2m³ |
| Ground Pressure | 0.50 kg/cm² |
| Gradeability | 35 degrees |
| Bucket Digging Force ISO | 143 kN |
| Arm Digging Force ISO | 115 kN |
| Swing Speed | 11 rpm |
| Max Travel Speeds | Fast 5.4 km/h, slow 3.3 km/h |
| Undercarriage and Superstructure | |
| Boom Length | 5700mm |
|---|---|
| Arm Length | 2950mm |
| Bottom Rollers | 9 |
| Top Rollers | 2 |
| Swinging Gear | Planetary gear reducer driven by an axial piston motor, automatic hydraulic released slewing brake |
| Working Area | |
| Max Digging Reach | 9745mm |
|---|---|
| Max Digging Depth | 6450mm |
| Max Digging Height | 9470mm |
| Max Dumping Height | 6735mm |
| Overall Height at Min Swing Radius | 7600mm |
| Min Swing Radius | 3662mm |
