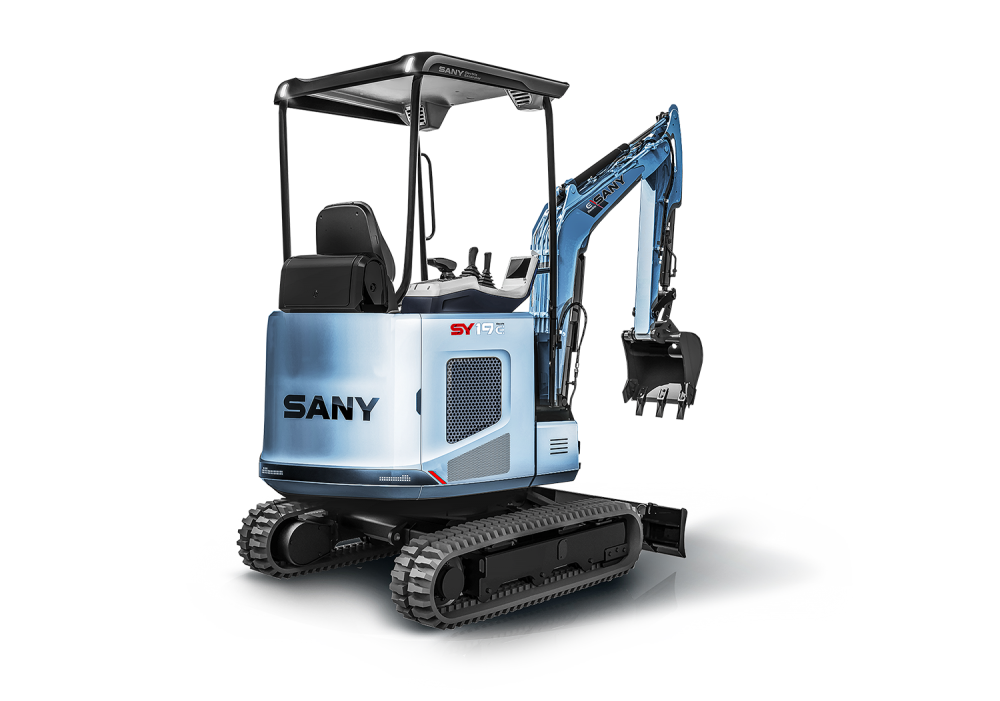

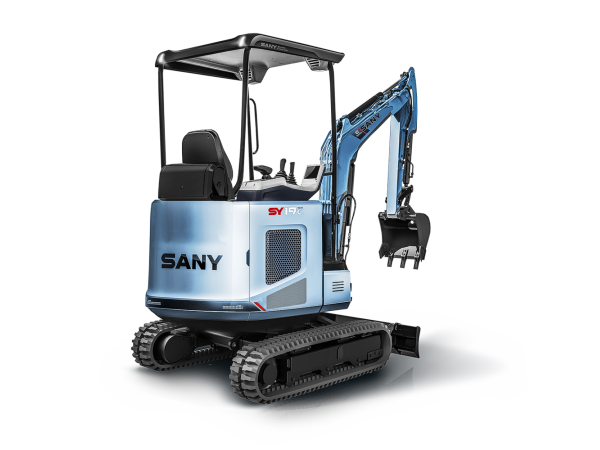

SANY SY19E
INDUSTRY LEADING 5-YEAR WARRANTY
The SY19E is SANY’s first electric mini excavator! As well as zero emissions and considerably lower noise levels, the compact electric SY19E is equipped with a lithium iron phosphate (cobalt free) battery which allows for faster, safer and more efficient charging as well as a significantly longer battery life to reduce total cost of ownership. Featuring a single automotive standard charging socket, the machine offers a fully flexible charging solution that includes a fast charge option of 1.5 hours, without the need to purchase any additional equipment.
CHARGE ANYWHERE
Fully flexible automotive charging solution. No Extra Charge.
CHARGE FASTER
Fast charge option. No Extra Charge.
WORK LONGER
Long life battery up to 3,500 full charge cycles. No Extra Charge.
GOT YOU COVERED
Industry leading 5-year warranty. No Extra Charge.
Technical Specs
| Battery | |
| Model | VMAX |
|---|---|
| Type | Permanent Magnet |
| Continous Operating Power | 10 kW |
| Max Rated Power | 15 kW |
| Max Torque | 72 Nm |
| Battery Type / Voltage | LFP (Lithium Iron Phosphate Battery |
| Rated Voltage | 268.8 V |
| Rated Capacity | 82 Ah |
| Fully Charged Battery Capacity | 22 kWh |
| Dimensions | |
| Tail Swing Radius | 920mm |
|---|---|
| Overal Length | 3624mm |
| Distance (Centre) Track Sprocket to IOdler Sprocket | 1220mm |
| Total Width | 980/1350mm |
| Total Width of Superstructure | 980mm |
| Overall Height Above Cab | 2410mm |
| Overall Height of The Boom | 1175mm |
| Undercarriage Length | 1585mm |
| Rear Length | 900mm |
| Track Guage | 750/1120mm |
| Undercarriage Width (With Blade) | 980/1350mm |
| Horizontal Clearence to Blade | 1190mm |
| Blade Height | 280mm |
| Track Height | 375mm |
| Track Pad Width | 230mm |
| Min Ground Clearence | 180mm |
| Rear Weight Ground Clearence | 455mm |
| Bonnet Height | 1265mm |
| Filling Quantities | |
| Traction Drive (Per Side) | 0.4 litres |
|---|---|
| Hydraulic Oil Tank | 21 litres |
| Hydraulic System | |
| Main Pump | Variable displacement axial piston pumps with load-sensing hydraulics |
|---|---|
| Max Oil Flow, | 60 l/min |
| Main Safety Valve | 24.5 MPa |
| Operating Wegiht | |
| Operating Weight | 1950 kg |
|---|---|
| Pressure Limiting Valves | |
| Pre-Control Circuit | 35 bar |
|---|---|
| Boom Circtuit | 245 bar |
| Swing Circuit | 162 bar |
| Driving Circuit | 245 bar |
| Rated Power | |
| Swing Speed | 10 rpm |
|---|---|
| Max Travel Speeds | Fast 3.6 km/h, slow 2.6 km/h |
| Max Traction Force | 15.6 kN |
| Bucket Capacity | 0.04 m³ |
| Ground Pressure | 0.31 kg/cm² |
| Gradeability | 30 degrees |
| Bucket Digging Force ISO | 15.2 kN |
| Arm Digging Force ISO | 9.2 kN |
| Undercarriage and Superstructure | |
| Boom Length | 1810mm |
|---|---|
| Arm Length | 1130mm |
| Bottom Rollers | 3 |
| Swinging Gear | Planetary gearbox driven by an axial piston motor, automatic parking brake is released hydraulically |
| Working Area | |
| Swing Frame Offset (R) | 350mm |
|---|---|
| Max Boom Swing Angle (L) | 73 degrees |
| Max Boom Swing Angle (R) | 46 degrees |
| Max Digging Reach | 4000mm |
| Max Digging Depth | 2360mm |
| Max Digging Height | 3665mm |
| Max Dumping Height | 2635mm |
| Min Dumping Height | 795mm |
| Max Vertical Digging Depth | 2215mm |
| Overall Height at Min Swing Radius | 2745mm |
| Arm Head Separation for Max. Working Equipment Retraction | 1230mm |
| Swing Radius with Swing Frame (L) | 1490mm |
| Swing Radius with Swing Frame (R) | 1510mm |
| Min Swing Radius | 1705mm |
| Max Ground Clearence of Blade Up | 310mm |
| Max Depth of Blade Down | 320mm |
| Swing Frame Offset (L) | 595mm |
