Mini Excavators

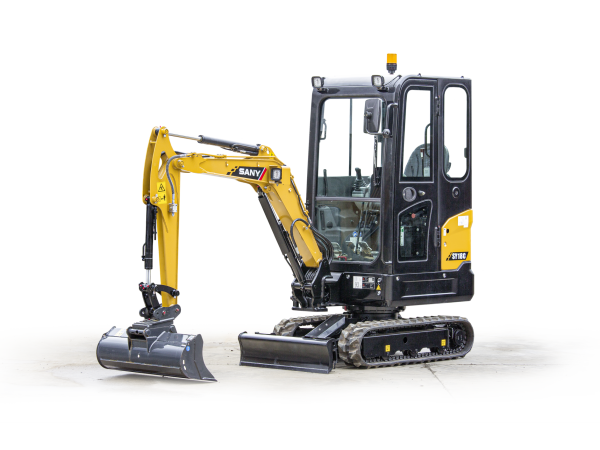

SANY SY18C
INDUSTRY LEADING 5-YEAR WARRANTY
The SANY SY18C is a versatile multi-purpose mini excavator. Agile and compact, powerful and precise the SY18C is a highly efficient machine and the ideal solution for jobs in tight spaces, whether in construction, landscaping, indoor job sites or narrow urban locations.
- Cab design
- Expanding undercarriage (980mm – 1,350mm)
- 5 year warranty for complete peace of mind
Technical Specs
| Dimensions | |
| Overall Height Above Cab | 2410mm |
|---|---|
| Tail Swing Radius | 920mm |
| Overall Height of The Boom | 1355mm |
| Distance (Centre) Track Sprocket to IOdler Sprocket | 1220mm |
| Undercarriage Length | 1585mm |
| Rear Length | 920mm |
| Track Guage | 750/1120mm |
| Undercarriage Width (With Blade) | 980/1350mm |
| Horizontal Clearence to Blade | 1190mm |
| Blade Height | 270mm |
| Track Height | 375mm |
| Track Pad Width | 230mm |
| Overal Length | 3665mm |
| Min Ground Clearence | 160mm |
| Total Width | 1030/1350mm |
| Rear Weight Ground Clearence | 470mm |
| Total Width of Superstructure | 1030mm |
| Bonnet Height | 1270mm |
| Engine | |
| Model | Yanmar 3TNV80F |
|---|---|
| Type | Water-cooled 4-stroke diesel engine with turbulence-chamber injection |
| Emission Standard | Stage V |
| Rated Power | 14.6 kW / 2400 rpm |
| Max Torque | 65.3 Nm / 1800 rpm |
| Displacment | 1267 cc |
| Batteries | 1 x 12v 60 Ah |
| Filling Quantities | |
| Fuel Tank | 20 litres |
|---|---|
| Engine Coolant | 5 litres |
| Engine Oil | 3.4 litres |
| Traction Drive (Per Side) | 0.3 litres |
| Hydrauylic System | 32 litres |
| Hydraulic Oil Tank | 21 litres |
| Hydraulic System | |
| Main Pump | Variable displacement axial piston pump |
|---|---|
| Max Oil Flow, | 72 l/min |
| Traction Drive | Variable displacement axial piston motor |
| Swing Motor | Axial piston motor |
| Max Oil Flow (AUX 1) | 40 l/min |
| Operating Wegiht | |
| Operating Weight | 1910 kg |
|---|---|
| Pressure Limiting Valves | |
| Boom Circtuit | 245 bar |
|---|---|
| Swing Circuit | 162 bar |
| Driving Circuit | 245 bar |
| Pre-Control Circuit | 35 bar |
| Rated Power | |
| Max Travel Speeds | Fast 4 km/h, slow 2.7 km/h |
|---|---|
| Max Traction Force | 15.6 kN |
| Bucket Capacity | 0.04 m³ |
| Ground Pressure | 0.29/0.31 kg/cm² |
| Gradeability | 30 degrees |
| Bucket Digging Force ISO | 15.2 kN |
| Arm Digging Force ISO | 9.2 kN |
| Swing Speed | 10 rpm |
| Undercarriage and Superstructure | |
| Boom Length | 1810mm |
|---|---|
| Arm Length | 1130mm |
| Bottom Rollers | 3 |
| Swinging Gear | Axial piston motor with planetary gearbox running in an oil bath and single-row slewing ring. The swinging gear brake is released hydraulically. |
| Undercarriage | Reinforced, generously dimensioned undercarriage. Welded undercarriage frame in box construction made of special material. Telescopic side frame. |
| Working Area | |
| Swing Frame Offset (R) | 350mm |
|---|---|
| Max Boom Swing Angle (L) | 73 degrees |
| Max Digging Reach | 4000mm |
| Max Boom Swing Angle (R) | 46 degrees |
| Max Digging Depth | 2360mm |
| Max Digging Height | 3665mm |
| Max Dumping Height | 2365mm |
| Min Dumping Height | 795mm |
| Max Vertical Digging Depth | 2215mm |
| Overall Height at Min Swing Radius | 2745mm |
| Arm Head Separation for Max. Working Equipment Retraction | 1230mm |
| Swing Radius with Swing Frame (L) | 1490mm |
| Swing Radius with Swing Frame (R) | 1510mm |
| Min Swing Radius | 1705mm |
| Max Ground Clearence of Blade Up | 310mm |
| Max Depth of Blade Down | 320mm |
| Swing Frame Offset (L) | 595mm |
