Wheeled Excavators

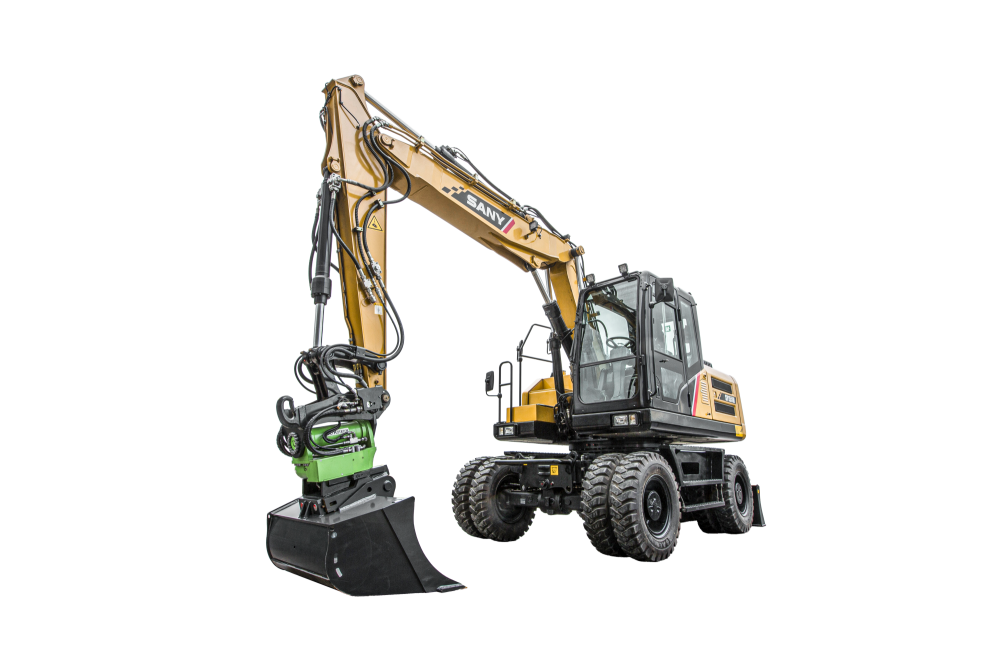

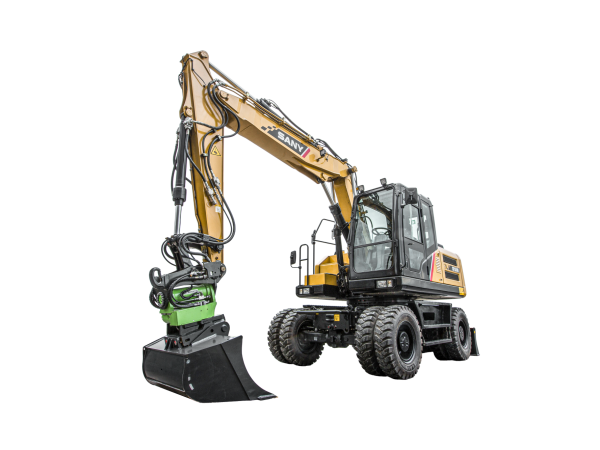

SANY SY155W
INDUSTRY LEADING 5-YEAR WARRANTY
The SY155W demonstrates how strong performance can take to the road reliably and safely. When it comes to mobility, the SANY SY155W is unrivalled, both on the construction site and over short distances. This compact wheeled excavator is an all-rounder boasting exemplary productivity and flexibility, working not only with strength but also precision.
– Stage V DEUTZ engine and efficient load sending hydraulic system
– Comfortable ROPS/FOPS certified operators cab
– 5 year warranty for complete peace of mind
Technical Specs
| Dimensions | |
| Undercarriage Width (With Blade) | 2550mm |
|---|---|
| Horizontal Clearence to Blade | 2200mm |
| Blade Height | 515mm |
| Min Ground Clearence | 360mm |
| Rear Weight Ground Clearence | 1230mm |
| Bonnet Height | 2616mm |
| Tail Swing Radius | 2030mm |
| Distance (Centre) Track Sprocket to IOdler Sprocket | 2600mm |
| Overal Length | 8200mm |
| Total Width | 2600mm |
| Total Width of Superstructure | 2600mm |
| Overall Height Above Cab | 3200mm |
| Rear Length | 2030mm |
| Engine | |
| Batteries | 2 x 12v 120 Ah |
|---|---|
| Model | DEUTZ TCD4.1 L4 |
| Type | Water-cooled, 4 cylinder, with commonrail and Adblue |
| Emission Standard | Stage V |
| Rated Power | 115 kW / 2000 rpm |
| Max Torque | 609 Nm / 1600 rpm |
| Displacment | 4.1 litres |
| Filling Quantities | |
| Fuel Tank | 240 litres |
|---|---|
| Engine Coolant | 26 litres |
| Engine Oil | 11.5 litres |
| AdBlue | 20 litres |
| Hydraulic Oil Tank | 175 litres |
| Hydraulic System | |
| Main Pump | Variable displacement axial piston pumps with load-sensing control |
|---|---|
| Max Oil Flow, | 250 l/min |
| Traction Drive | Variable displacement axial piston motor |
| Swing Motor | Axial piston motor |
| Max Oil Flow (AUX 1) | 100 l/min |
| Max Oil Flow (AUX 2) | 100 l/min |
| Operating Wegiht | |
| Operating Weight | 15000 kg |
|---|---|
| Pressure Limiting Valves | |
| Boom Circtuit | 320 bar |
|---|---|
| Swing Circuit | 250 bar |
| Driving Circuit | 360 bar |
| Pre-Control Circuit | 39 bar |
| Rated Power | |
| Swing Speed | 10.5 rpm |
|---|---|
| Max Travel Speeds | Fast 20 km/h, slow 7 km/h |
| Max Traction Force | 89 kN |
| Bucket Capacity | 0.6m³ |
| Ground Pressure | 0.50 kg/cm² |
| Bucket Digging Force ISO | 87 kN |
| Arm Digging Force ISO | 64 kN |
| Undercarriage and Superstructure | |
| Boom Length | 1930mm + 3100mm |
|---|---|
| Arm Length | 2500mm |
| Swinging Gear | Planetary gear reducer driven by an axial piston motor, automatic hydraulic released slewing brake |
| Working Area | |
| Overall Height at Min Swing Radius | 7324mm |
|---|---|
| Max Ground Clearence of Blade Up | 472mm |
| Max Depth of Blade Down | 167mm |
| Max Digging Reach | 8900mm |
| Max Digging Depth | 5400mm |
| Max Digging Height | 9950mm |
| Max Dumping Height | 7200mm |
| Max Vertical Digging Depth | 4500mm |
